```{admonition} Superseded — two-component capability now lives in MultiComponentCluster :class: important The TwoComponentConfig / generate_two_component_cluster API this page used to validate was deleted in the 2026-06 unified multi-component redesign (together with its unit suite tests/unit/test_populations.py). It carried a real physics bug: each sub-population’s velocity DF was fed the full cluster mass (an isolated superposition, never a shared potential), with no COM/virial finalisation — silent for equal masses, non-self-consistent for unequal-mass populations. Its replacement solves exactly that problem: every component is drawn from its own DF in one shared self-consistent potential.


## Where the capability went

```{list-table}
:header-rows: 1

* - Need
  - Use now
  - Validation page
* - Two (or more) populations in one self-consistent potential, DF-defined
    (lowered-isothermal/LIMEPY family; GC 1G/2G, halo+core, mass segregation
    via $\delta$)
  - `MultiComponentCluster.from_components` / `.from_mass_segregation` /
    `.from_imf` (**Engine A**)
  - [](multimass-equilibrium.md)
* - Two (or more) populations with *prescribed densities* (Plummer/EFF/King
    mixes) in one shared potential, DFs by Eddington inversion
  - `MultiComponentCluster.from_density_profiles` (**Engine B**)
  - [](engine-b-eddington.md)

The two-component check that survives¶

scripts/validate_cluster_ic.py §2 (rewired 2026-06-09 onto MultiComponentCluster, re-run 2026-06-10, ALL PASS) exercises the canonical two-population case — a cold ( $w=0.7$ ) and a hot ( $w=1.0$ ) population in one shared $W_0=7$ potential:

Property	Expected	Measured	Gate
Radial separation (cold concentrated)	median $r_{\rm cold} <$ median $r_{\rm hot}$	1.50 pc $< 8.36$ pc	strict inequality
Per-component virial $Q_j$ (exact-quadrature oracle)	$[0.5, 0.5]$	$[0.5000, 0.5000]$	$\|Q_j - 0.5\| < 5\times10^{-3}$

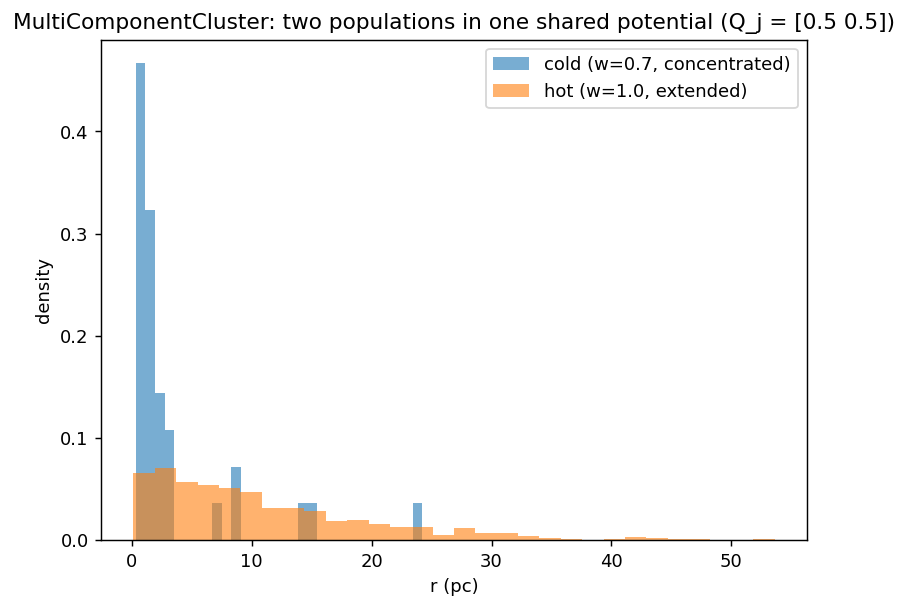

MultiComponentCluster.from_components: radial distributions of a cold
(w=0.7, concentrated, median r = 1.50 pc) and a hot (w=1.0, extended,
median r = 8.36 pc) population sampled from ONE shared self-consistent
potential, each in detailed equilibrium (Q_j = [0.5, 0.5] by the
exact-quadrature oracle). From scripts/validate_cluster_ic.py §2
(2026-06-10 run). — Figure 1:`MultiComponentCluster.from_components`: radial distributions of a cold ( $w=0.7$ , concentrated, median $r = 1.50$ pc) and a hot ( $w=1.0$ , extended, median $r = 8.36$ pc) population sampled from ONE shared self-consistent potential, each in detailed equilibrium ( $Q_j = [0.5, 0.5]$ by the exact-quadrature oracle). From `scripts/validate_cluster_ic.py` §2 (2026-06-10 run).

env -u VIRTUAL_ENV uv run --no-sync python scripts/validate_cluster_ic.py

Supersession history¶

Pre-2026-06: generate_two_component_cluster superposed two independently generated populations; unit-tested only, flagged on this page as “unit-backed, not a dedicated validation suite”. The earlier figure here showed the configured radial separation (median $r_A = 0.52 < r_B = 2.06$ pc) but each population’s DF saw the full cluster mass.
2026-06-09 (Phase 1c of the unified redesign): the module (src/progenax/populations.py) was deleted outright — no backwards-compatibility shim — after an adversarial review identified the shared-potential bug; validate_cluster_ic.py §2 was rewired to MultiComponentCluster and the figure above regenerated from the new API.

References¶

Theory at Two-component populations — worked examples. The exact self-consistent multi-component DF family is Gieles & Zocchi (2015) (LIMEPY); progenax’s own differentiable implementation is validated at Multi-mass LIMEPY equilibrium (Engine A) and Multi-component Eddington equilibria (Engine B).

References¶

Gieles, M., & Zocchi, A. (2015). A family of lowered isothermal models. Monthly Notices of the Royal Astronomical Society, 454, 576–592. 10.1093/mnras/stv1848
