Cluster-builder validation - progenax — differentiable initial conditions for N-body simulations

The build_cluster convenience layer is a thin, differentiable wrapper over the composable build_spatial_ic core: it resolves the mass spec, auto-pairs the scale-matched equilibrium velocity DF (matched_velocity_df), and applies optional tidal / rotation modifiers. Because the base case is proven bit-identical to the manual composition (exact == in tests/unit/builders/test_cluster_builders.py), every equilibrium guarantee is inherited from the already-validated profiles and DFs — this page verifies only the new surface: that each alias builds a near-virial IC, that the modifiers are physically correct, and that the differentiable knobs flow.

Figures: scripts/validate_cluster_builders.py (prints expected-vs-measured for every check and exits non-zero on any failure). End-to-end equilibrium across all five profiles: tests/integration/test_cluster_builders_integration.py. Gradient correctness: the differentiability audit (Differentiability gradient audit) registers eight measured AD-vs-FD cases for the builders plus a tidal straight-through teeth test.

Conventions for this suite

Q is the virial ratio $Q=T/|V|$ ; $Q=0.5$ is equilibrium. build_cluster virial-scales to $Q=0.5$ by default, so all five aliases land at 0.5000. Pass Q=None for the faithful unscaled equilibrium of the true-DF samplers (King/EFF/Michie/LIMEPY sit near 0.5 unscaled by construction).
tidal_radius is Plummer-only. King/EFF/Michie/LIMEPY carry a native truncation radius $r_t$ ; passing tidal_radius to them would double-truncate, so it raises. Tidal stripping is applied to the one untruncated profile (Plummer); the truncated families set $r_t$ on the profile (and that $r_t$ is differentiable for inference).
Density is compared against the shell-volume-weighted analytic density $\int\rho\,r^2\,dr / \int r^2\,dr$ — the matched estimator for a counts-per-shell-volume sampled density near a steep truncation.

What is verified¶

Each row is a PASS/FAIL check in scripts/validate_cluster_builders.py. The Tolerance is the bound the script enforces (sys.exit(1) on any failure); the Measured value is regenerated on every run.

Property	Tolerance (as enforced)	Measured	Anchor
Virial $Q=T/\|V\|$ , all 5 aliases ( $N=5000$ )	$\|Q-0.5\|<0.03$	0.5000 (Plummer/King/EFF/Michie/LIMEPY)	default $Q=0.5$ virial scale
Density recovery, sampled vs shell-weighted analytic	max rel $<0.20$ (bins $\ge50$ counts)	Plummer 0.072 / King 0.135 / EFF 0.128	inherited inverse-CDF sampling
Tidal cut: ghost mass beyond $r_t$	exact 0	0.000 (survivor fraction 0.71)	`apply_tidal_truncation` (hard cut)
Rotation $L_z(\omega)$ slope vs $\Sigma m R^2$	rel err $<10^{-9}$	$4.7\times10^{-16}$ (machine-exact)	solid-body overlay
Differential $v_\phi(R)$ overlay	max rel $<0.15$	0.057	peaked rotation curve
Anisotropy $\beta(r)$ vs $r^2/(r^2+r_a^2)$	max dev $<0.05$	0.0187	Osipkov-Merritt matched DF

Density recovery across the families¶

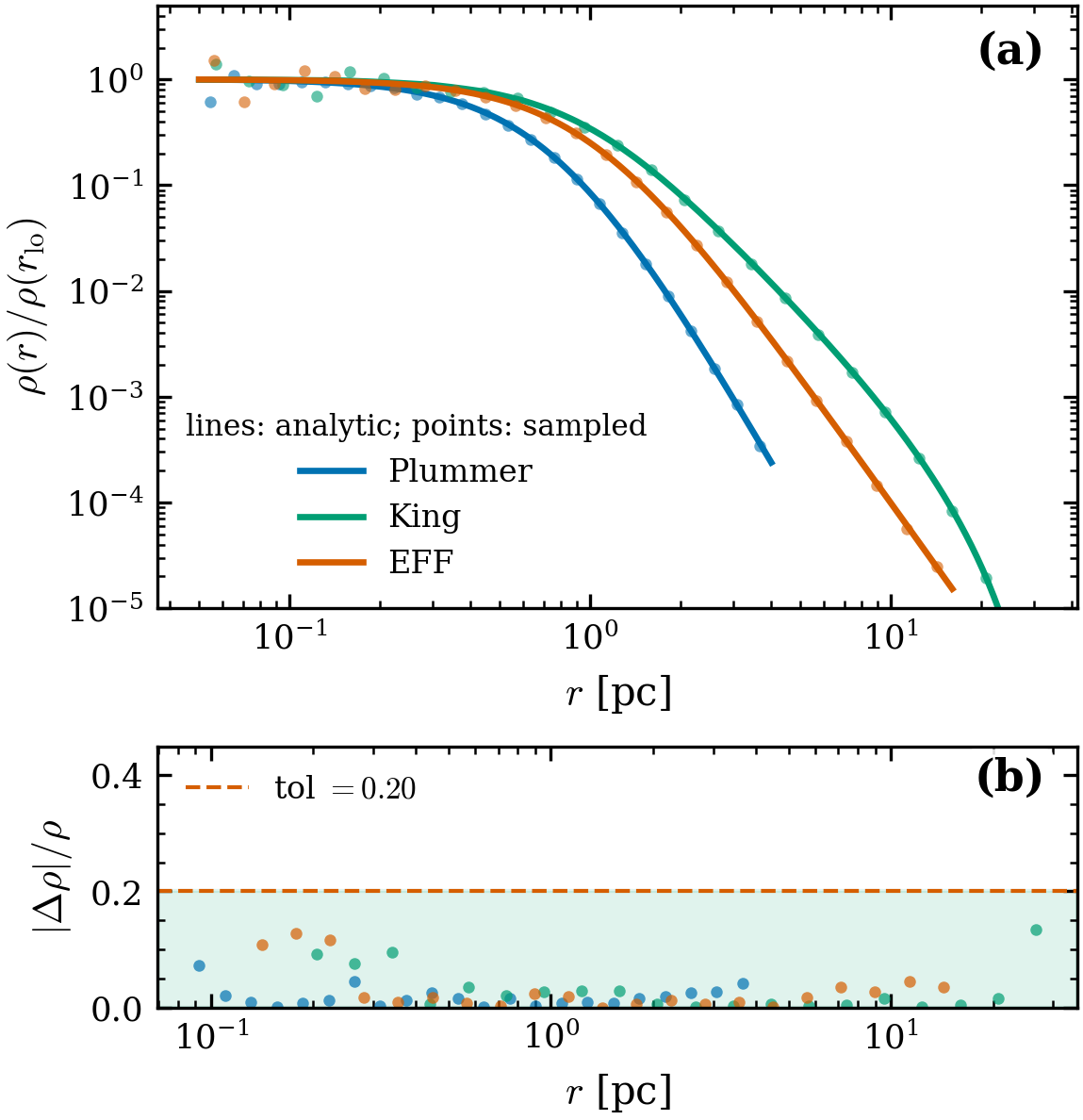

Figure 1:Sampled radial number-density (points) vs the shell-volume-weighted analytic density (lines) for Plummer, King, and EFF built through the named aliases, with a residual panel below. The convenience builder reuses each profile’s own inverse-CDF sampler, so the shape is recovered to a few percent per well-populated bin — the residual at the steep King edge is honest Poisson noise in the outermost bin, not a sampler bias.

Tidal truncation (Plummer-only)¶

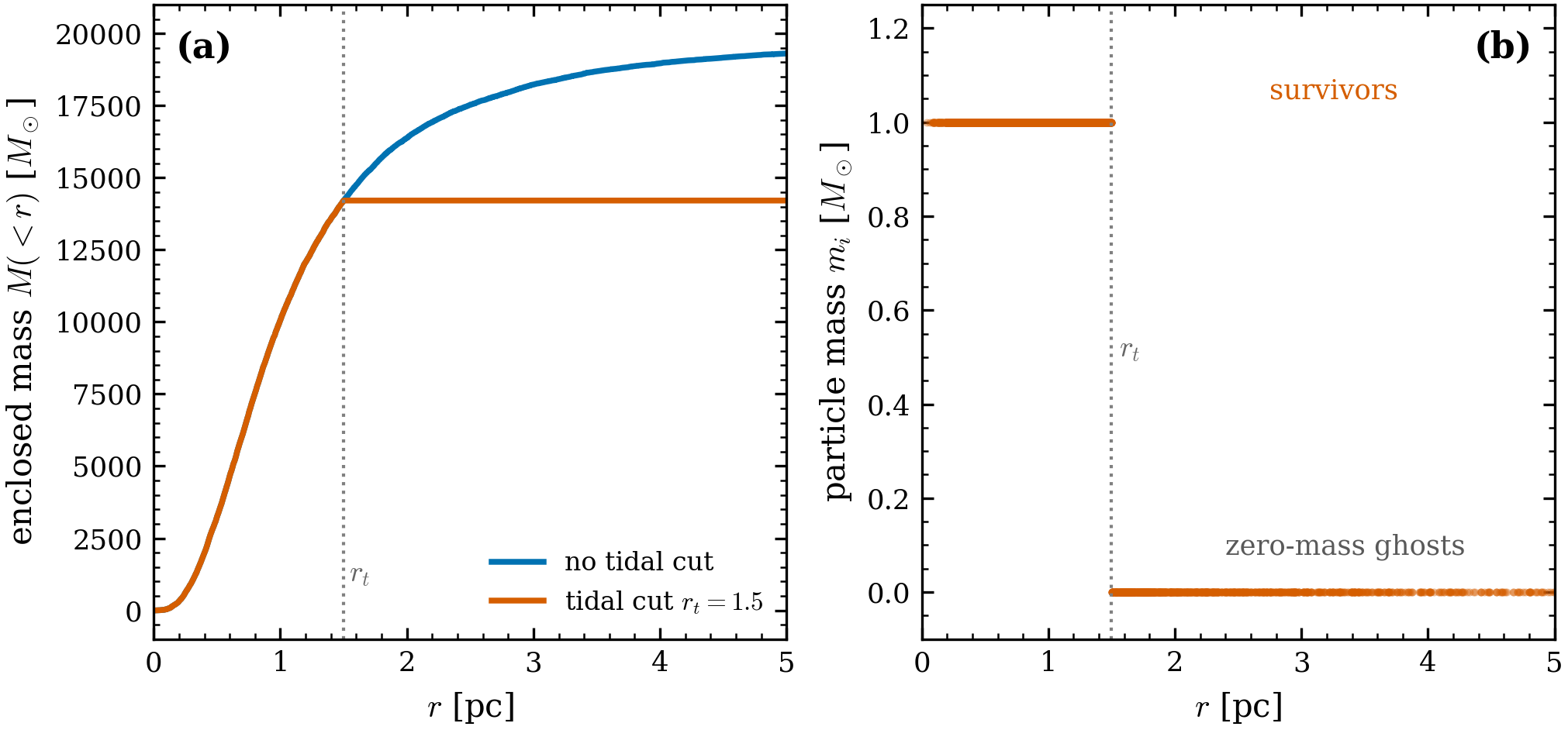

Figure 2:Radial mass profile of a Plummer build with vs without tidal_radius. The cut at $r_t$ is exact (the straight-through apply_tidal_truncation forward pass is a hard Heaviside), and the truncated stars become zero-mass ghosts beyond $r_t$ (fixed shape $N$ , so the build stays jit/grad-safe). Survivors keep velocities drawn for the untruncated potential — the set is super-virial (audit S4); use revirialize=True, or a native- $r_t$ King/LIMEPY model, for a stationary truncated equilibrium.

Rotation: solid-body and differential¶

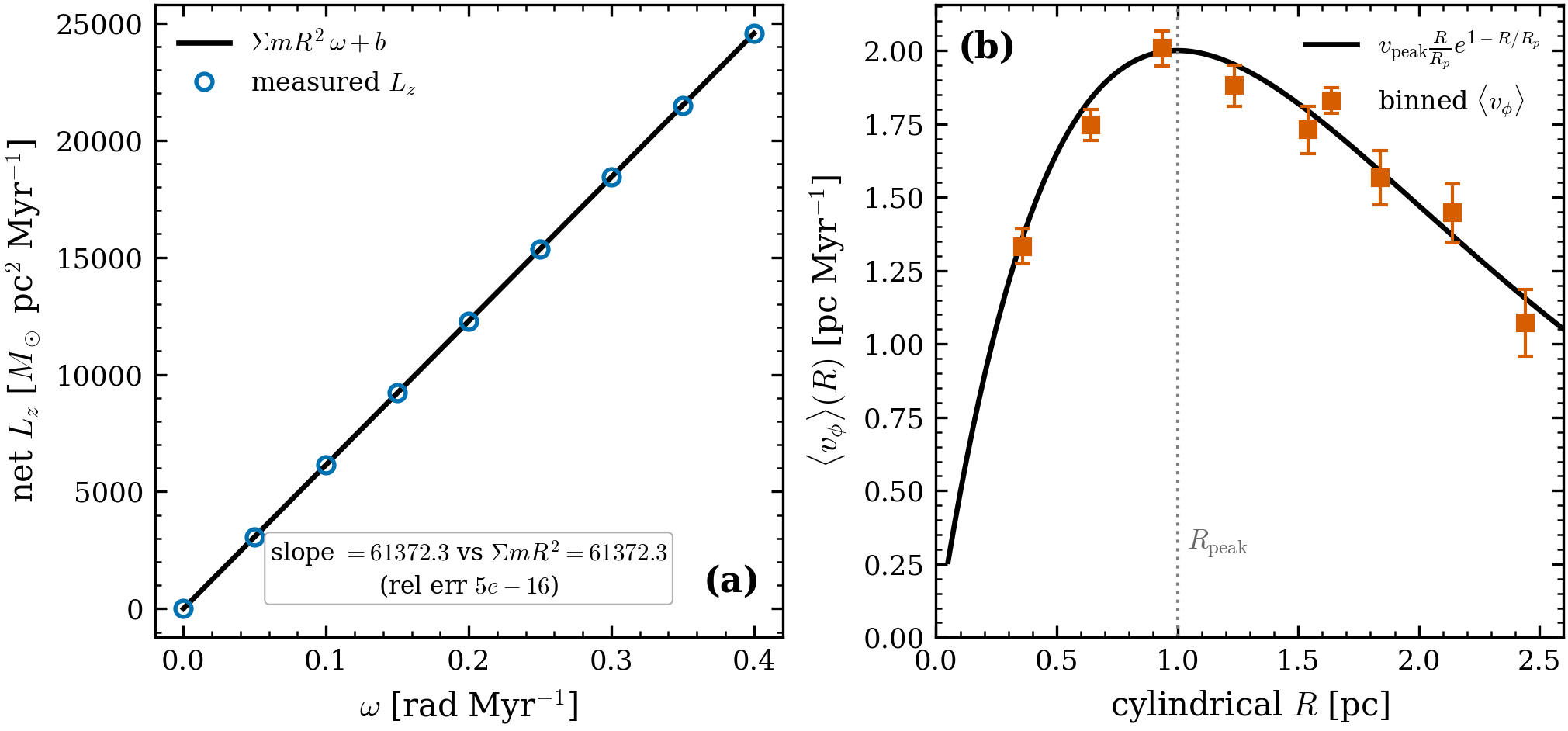

Left: solid-body angular momentum L_z(\omega) is exactly linear with slope
\Sigma m R^2 (measured to machine precision, rel err 4.7\times10^{-16}, since the
overlay leaves positions unchanged). Right: a differential RotationSpec produces a
peaked v_\phi(R) curve recovered to <6\% in the inner region. Rotation injects net
L_z (audit S3, deliberately non-stationary). — Figure 3:**Left:** solid-body angular momentum $L_z(\omega)$ is exactly linear with slope $\Sigma m R^2$ (measured to machine precision, rel err $4.7\times10^{-16}$ , since the overlay leaves positions unchanged). **Right:** a differential `RotationSpec` produces a peaked $v_\phi(R)$ curve recovered to $<6\%$ in the inner region. Rotation injects net $L_z$ (audit S3, deliberately non-stationary).

Osipkov-Merritt anisotropy¶

$Measured anisotropy \beta(r)=1-\sigma_t^2/(2\sigma_r^2) for a Plummer build with anisotropy_radius set, against the analytic Osipkov-Merritt profile \beta(r)=r^2/(r^2+r_a^2) (max deviation 0.019). anisotropy_radius is threaded into the matched DF and is valid only for Plummer/EFF; King is isotropic and Michie/LIMEPY carry their anisotropy intrinsically (set r_a on the profile).$

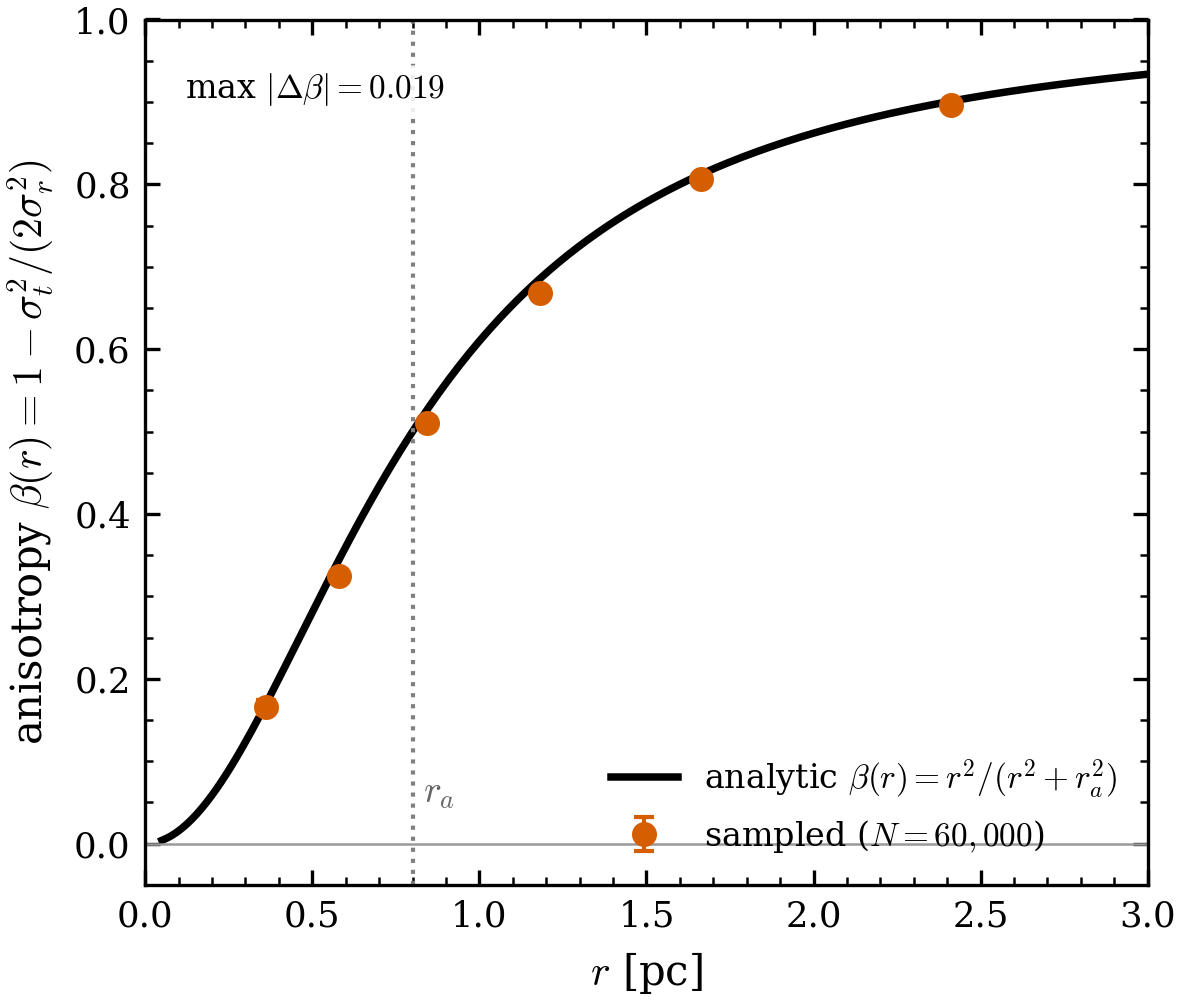

Figure 4:Measured anisotropy $\beta(r)=1-\sigma_t^2/(2\sigma_r^2)$ for a Plummer build with anisotropy_radius set, against the analytic Osipkov-Merritt profile $\beta(r)=r^2/(r^2+r_a^2)$ (max deviation 0.019). anisotropy_radius is threaded into the matched DF and is valid only for Plummer/EFF; King is isotropic and Michie/LIMEPY carry their anisotropy intrinsically (set $r_a$ on the profile).

Differentiability¶

Every differentiable knob of the builder is registered in the release gradient-gate (Differentiability gradient audit) with a measured AD-vs-FD tolerance: build_cluster in r_h (machine-exact), anisotropy_radius, and rotation $\omega$ ; the per-family alias paths (King r_c, EFF $\gamma$ , Michie/LIMEPY W0); and build_cluster_from_params in r_h through the ClusterParams θ-PyTree. The tidal_radius channel is a straight-through surrogate (live but not finite-difference-consistent by design) and is covered by a dedicated live-gradient teeth test rather than a false FD-consistent case.
