Cross-engine agreement (B1) - progenax — differentiable initial conditions for N-body simulations

progenax builds multi-component equilibria two genuinely different ways, and the first demo checks that they describe the same physical cluster.

Engine A (MultiComponentCluster.from_components) starts from a distribution function: the lowered-isothermal / LIMEPY family Gieles & Zocchi, 2015. The density is whatever that DF produces in its own self-consistent potential, found by integrating the coupled Poisson ODE.
Engine B (MultiComponentCluster.from_density_profiles) starts from a prescribed density (here a KingProfile), builds the shared potential by one cumulative-trapezoid Poisson pass, and recovers the DF by Eddington inversion.

If both engines are correct, the King model (W₀=5, g=1, r_c=1 pc) built either way must sample the same radial profile, the same dispersion profile, and the same energy distribution. Nothing forces this but the physics — the two code paths share no quadrature, no ODE, and no DF evaluation.

The two constructions¶

Engine A — the lowered-isothermal DF. For a single mass component with truncation order $g$ , the DF is a lowered (energy-shifted) Maxwellian (Gieles & Zocchi (2015), eq. 2),

f(E) \;\propto\; E_g\!\left(\frac{E}{s^2}\right), \qquad E_g(x) = e^{x}\,P(g, x)\ \ (x>0),\quad 0\ \text{otherwise},

(1)

with $E = \Psi(r) - \tfrac12 v^2$ the (positive, bound) relative energy, $s$ the velocity scale, and $P(g,x)=\gamma(g,x)/\Gamma(g)$ the regularized lower incomplete gamma. The index is $g$ itself (the density uses $g+\tfrac32$ ). The single parameter $g$ slides continuously between classical models — $g=0$ Woolley, $g=1$ King, $g=2$ Wilson — and at $g=1$ the lowered exponential collapses to $E_1(x) = e^x - 1$ , the textbook King DF. The density $\hat\rho(\Psi)=\int f\,d^3v$ closes Poisson’s equation, solved as a coupled ODE in $(\Psi, d\Psi/dr)$ — full derivation on the lowered-model-family page.

Engine B — Eddington inversion. Given the same King density as a prescribed shape, the shared potential $\Psi(r)$ follows from Poisson’s equation by quadrature, and the ergodic DF is recovered by the Eddington formula (Binney & Tremaine 2008, eq. 4.46b),

f(E) = \frac{1}{\sqrt8\,\pi^2} \left[\int_0^{E}\frac{d^2\rho}{d\Psi^2}\,\frac{d\Psi}{\sqrt{E-\Psi}} + \frac{1}{\sqrt E}\left.\frac{d\rho}{d\Psi}\right|_{\Psi=0}\right].

(2)

The two routes invert each other in principle — A maps DF $\to$ density, B maps density $\to$ DF — so agreement is a true round-trip cross-validation.

Inputs and assumptions¶

This demo fits nothing — there are no recovered parameters. It builds one King model two ways and compares them, so every quantity is either a known/fixed model input or a numerical choice.

Table 1:Model inputs

Input	Meaning and role	Status (fiducial)
$W_0$	King central dimensionless potential (concentration); the shared model both engines build (`W0`).	known / fixed (5.0)
$g$	LIMEPY truncation order; $g=1$ is the classic King DF (`GG`).	known / fixed (1.0)
$r_c$	King core radius — the length scale (`R_C`).	known / fixed (1.0 pc)
$\alpha_j, w_j, m_j$	Single mass component (weight, velocity-scale weight, mass label all $=1$ ), so the two engines compare like-for-like.	known / fixed (one component)
$G$	Gravitational constant (STELLAR units); sets the physical velocity scale.	known / fixed
$N$	Stars drawn from each engine to measure the sampled radial CDF and binned $\sigma$ , at the same PRNG key so residuals isolate model (not shot) differences.	numerical choice ( $2\times10^4$ , seed 0)
$\sigma$ -bins, oracle grids, quadrature, gates	6 bins over the 5%–90% radial quantiles; 300–400-pt analytic-oracle grids; 400-pt speed-moment quadrature; gate thresholds (KS $<0.02$ , $\|\sigma_B/\sigma_A-1\|<0.02$ , $Q_j=0.5\pm3\times10^{-3}$ ).	numerical choices

Important

The two engines are handed the same physics under two incompatible conventions, so the comparison is fair only as a shape comparison. Engine A’s DF lives on a dimensionless lowered-potential argument $\hat E\in[0,W_0]$ ; Engine B’s Eddington $f$ lives on physical relative energy $E\in[0,\Psi_0]$ . They are reconciled only through the linear map $\hat E=(W_0/\Psi_0)E$ and a peak normalization, and the $\rho(r)$ residual is taken after re-normalizing each curve to its central value. The agreement claim therefore rests on the convention-free gates — the sampled-CDF KS distance and the binned dispersion ratio — while the $f(E)$ overlay is a diagnostic that already carries a $\sim$ 5% edge residual by construction of the matching, not a tested gate.

What is measured (freshly run, ALL PASS)¶

Both engines are sampled at $N = 2\times10^4$ with the same PRNG key, so the draws are strongly correlated and the residuals isolate genuine model differences rather than shot noise. Measured 2026-06-11 (key=0):

Check	Measured	Gate
Tidal radius $r_t$ (A vs B)	10.8054 pc (both)	consistency
Theory virial $Q_j = T_j/\|W_j\|$ — Engine A	0.50019	$0.5 \pm 3\times10^{-3}$
Theory virial $Q_j$ — Engine B	0.50000	$0.5 \pm 3\times10^{-3}$
Radial Kolmogorov–Smirnov distance (sampled CDF)	$1.5\times10^{-4}$	$< 0.02$
Max $\|\sigma_B/\sigma_A - 1\|$ (interior bins)	$3.5\times10^{-4}$	$< 0.02$
$\rho(r)$ shape max fractional diff (diagnostic)	$7.95\times10^{-13}$	—
$f(E)$ peak-matched max diff (diagnostic)	$5.05\times10^{-2}$	—

The two independent engines agree on the sampled radial CDF to a KS distance of $1.5\times10^{-4}$ and on the dispersion profile to $3.5\times10^{-4}$ — two orders of magnitude inside the 0.02 gate. The density shape agrees to $8\times10^{-13}$ (essentially the floating-point floor, since both reduce the same King profile after re-normalizing to the central value).

Figure¶

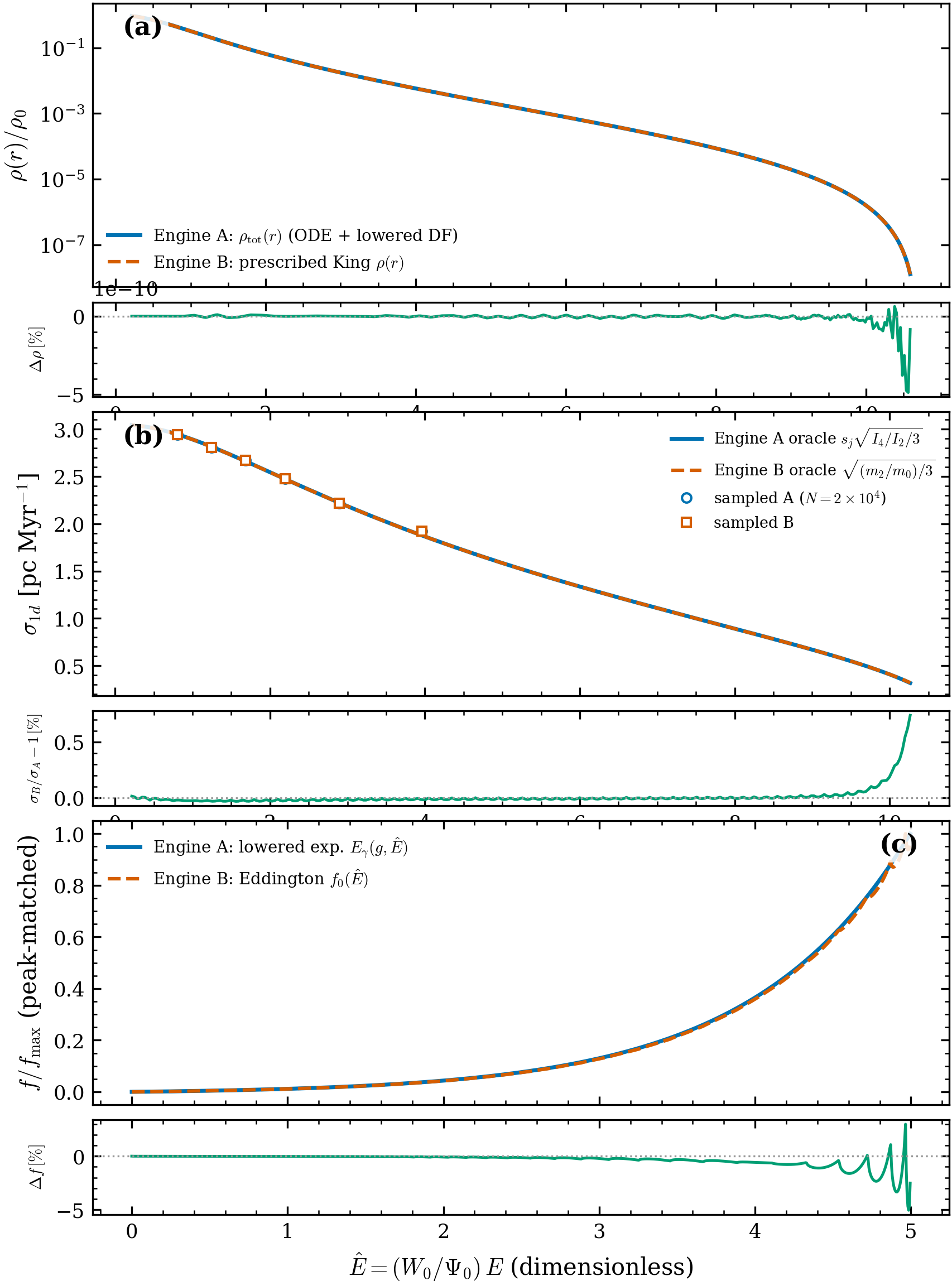

Cross-engine King agreement (scripts/demo_cross_engine.py, ALL PASS).
(a) \rho(r)/\rho_0 for Engine A (DF-defined) and Engine B
(density-defined) with a residual strip — coincident to 8\times10^{-13} after
central re-normalization. (b) \sigma_{1\mathrm D}(r) from the two
independent oracles plus both sampled profiles (N=2\times10^4, same key);
\max|\sigma_B/\sigma_A-1| = 3.5\times10^{-4}. (c) f(E) overlay on the
dimensionless energy axis \hat E = (W_0/\Psi_0)E — the lowered-isothermal DF
shape (A) and the Eddington f-row (B), peak-matched. — Figure 1:**Cross-engine King agreement** (`scripts/demo_cross_engine.py`, ALL PASS). **(a)** $\rho(r)/\rho_0$ for Engine A (DF-defined) and Engine B (density-defined) with a residual strip — coincident to $8\times10^{-13}$ after central re-normalization. **(b)** $\sigma_{1\mathrm D}(r)$ from the two independent oracles plus both sampled profiles ( $N=2\times10^4$ , same key); $\max|\sigma_B/\sigma_A-1| = 3.5\times10^{-4}$ . **(c)** $f(E)$ overlay on the dimensionless energy axis $\hat E = (W_0/\Psi_0)E$ — the lowered-isothermal DF shape (A) and the Eddington $f$ -row (B), peak-matched.

Caveats¶

Warning

The $f(E)$ overlay is matched by peak, and shows a $\sim 5\%$ edge residual. The two engines parametrize energy and normalize the DF differently; after matching the peak on a common dimensionless axis, the largest discrepancy ( $5.05\times10^{-2}$ ) sits at the truncation edge / central cusp, where the lowered-exponential cutoff and the Abel-inverted tail differ in shape. It is reported as a diagnostic, not gated — the sampled-CDF (KS) and dispersion gates carry the agreement claim, and a $5\%$ DF-shape edge mismatch is invisible in those sampled statistics.
This is one model, not a sweep. A single concentration ( $W_0=5$ ) at one resolution is checked. The wider parameter agreement is established separately by the Engine B validation suite, whose King A-vs-B anchor measures 0.0002 / 0.0003 across its own headline mix.
Single shared seed; interior bins only. The headline KS / $\sigma$ -deviation numbers are one-seed measurements (key=0, deliberately shared to cancel shot noise), not an ensemble; and the $\sigma$ gate is evaluated only over the 5%–90% radial quantiles — the cusp and truncation edge (exactly where the $f(E)$ residual peaks) are excluded.
Single mass component. The cross-check uses a one-component ( $w_j=m_j=1$ ) model; the multimass machinery both engines support is exercised in the Engine B validation suite, not here.

How to run¶

env -u VIRTUAL_ENV uv run --no-sync python scripts/demo_cross_engine.py

References¶

The lowered-isothermal / LIMEPY family is Gieles & Zocchi (2015); the King model King (1966); Eddington inversion and the ergodic DF follow Binney & Tremaine (2008). Engine internals: the multi-component theory pages and the Engine B validation suite.

References¶

Gieles, M., & Zocchi, A. (2015). A family of lowered isothermal models. Monthly Notices of the Royal Astronomical Society, 454, 576–592. 10.1093/mnras/stv1848
King, I. R. (1966). The structure of star clusters. III. Some simple dynamical models. The Astronomical Journal, 71, 64–75. 10.1086/109857
