Regular-grid interpolation

Regular-grid interpolation is the table primitive for data that live on a Cartesian product of one-dimensional axes. Atmosphere grids, calibration surfaces, and tracks often have this shape: each coordinate axis is sorted, and the value array stores samples on the tensor grid.

This complete example builds a two-component affine table. Multilinear interpolation must recover both components exactly because an affine function has no unresolved curvature inside a cell.

from jaxstro.jaxconfig import enable_high_precision

enable_high_precision()  # before creating JAX arrays

import jax.numpy as jnp

from jaxstro.numerics.regular_grid import bilinear_interp, regular_grid_interp

x_axis = jnp.array([0.0, 1.0, 3.0])
y_axis = jnp.array([-1.0, 2.0])
xx, yy = jnp.meshgrid(x_axis, y_axis, indexing="ij")
values = jnp.stack([3.0 * xx + yy, xx - 2.0 * yy], axis=-1)
xi = jnp.array([[0.25, 0.5], [2.5, 1.5]])

interpolated = regular_grid_interp((x_axis, y_axis), values, xi)
expected = jnp.stack(
    [3.0 * xi[:, 0] + xi[:, 1], xi[:, 0] - 2.0 * xi[:, 1]],
    axis=-1,
)
bilinear = bilinear_interp(
    x_axis, y_axis, values[..., 0], xi[:, 0], xi[:, 1]
)

outside = jnp.array([[-0.5, 0.5], [3.5, 1.0]])
clamped = regular_grid_interp(
    (x_axis, y_axis), values[..., 0], outside, boundary="clamp"
)
filled = regular_grid_interp(
    (x_axis, y_axis),
    values[..., 0],
    outside,
    boundary="fill",
    fill_value=-99.0,
)

assert jnp.allclose(interpolated, expected)
assert jnp.allclose(bilinear, expected[:, 0])
assert jnp.allclose(clamped, jnp.array([0.5, 10.0]))
assert jnp.array_equal(filled, jnp.array([-99.0, -99.0]))

The leading dimensions of values correspond to the grid axes. Every trailing dimension is payload, so one interpolation call can return a scalar, vector, matrix, spectrum, or a batch of diagnostics. bilinear_interp(...) and trilinear_interp(...) assemble two- and three-dimensional queries before calling the same generic kernel.

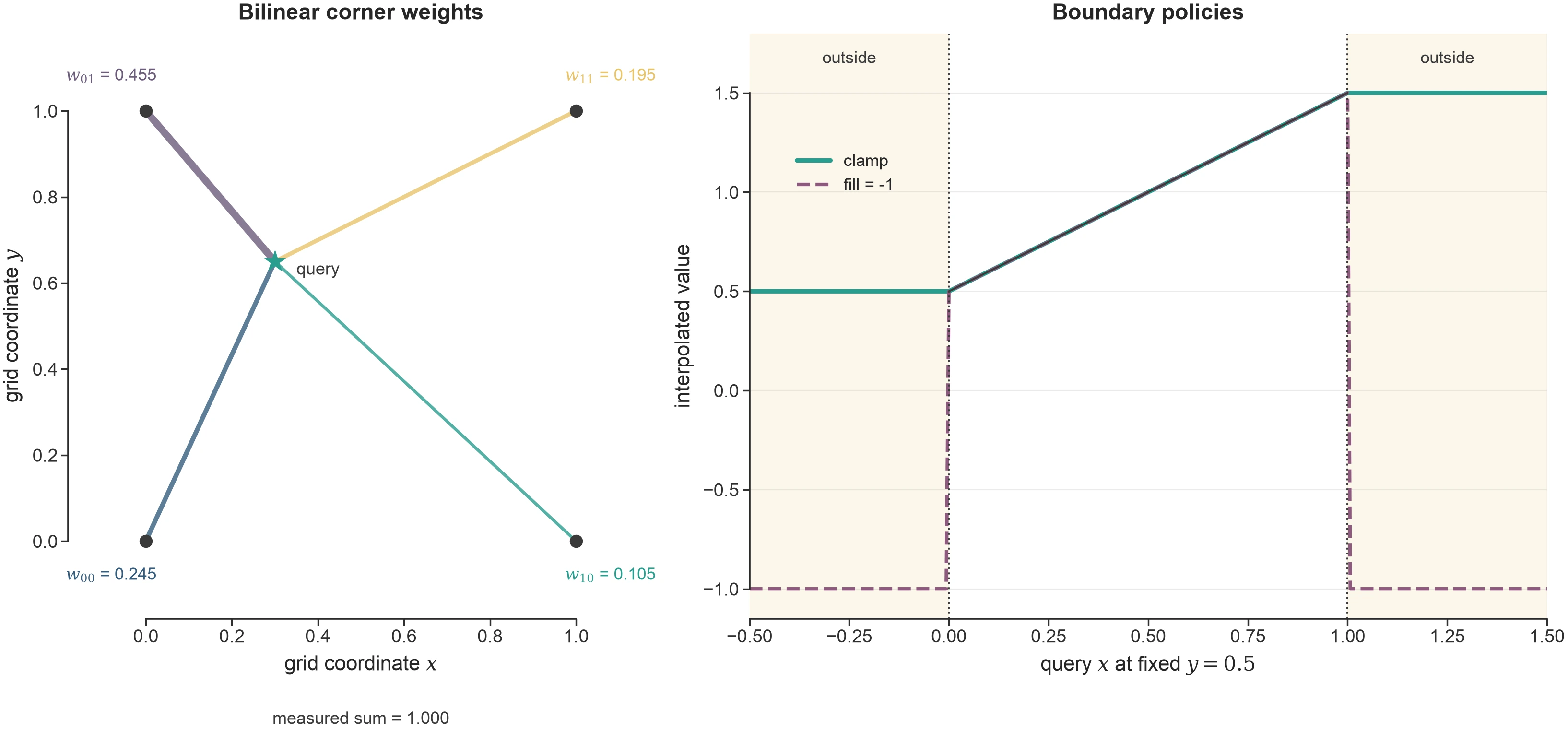

Unit-square interpolation query connected to four corners with measured bilinear weights, beside clamp and fill outputs across the grid boundary — Figure 1:The left panel obtains each weight by interpolating a one-hot corner table with the public bilinear API; the measured weights sum to one. The right panel sends one affine slice through the public clamp and fill policies. This is a contract visualization for one executable fixture, not a general interpolation-error benchmark.

Learning objectives¶

After this chapter, you should be able to derive multilinear corner weights, separate boundary policy from interpolation arithmetic, and identify which preparation steps remain discrete under JAX transformations.

Concept check: outside the table¶

Predict the value and coordinate gradient just outside a grid for clamp and fill policies. Separately predict the eager failure for reject and name the traced caller precondition: rejection is host validation, not a differentiable boundary rule. Compute the supported paths, then audit them against those distinct contracts rather than imagining an extrapolation or reject gradient.

Boundary policy¶

The boundary policy is explicit:

boundary="clamp" clips each query coordinate to the nearest grid endpoint.
boundary="fill" returns fill_value for the complete payload whenever any coordinate lies outside the domain.
boundary="reject" raises eagerly for a concrete outside query.

reject is an eager/debug guard. Value-dependent eager validation is skipped while axes or queries are traced, because a Python exception cannot depend on an unknown traced value. Compiled callers that require rejection must validate the axes and query domain before entering jax.jit. The fill_value is static under jax.jit; the boundary string is static too. Changing either value selects a distinct compiled program.

The fill sentinel is a numerical policy, not missing-data semantics. A downstream model must decide whether a finite sentinel, NaN, masking, or prior-domain restriction is scientifically appropriate.

Multilinear weights¶

For each dimension, the evaluator finds the enclosing interval and computes a fractional coordinate:

t_d = \frac{x_d - a_{d,i_d}}{a_{d,i_d+1} - a_{d,i_d}}.

(1)

The value is the weighted sum of all 2^D corners of that cell:

F(\boldsymbol{x}) = \sum_{\boldsymbol{b}\in\{0,1\}^D} f_{\boldsymbol{i}+\boldsymbol{b}} \prod_{d=1}^{D} t_d^{b_d}(1-t_d)^{1-b_d}.

(2)

This is the rectangular-table multilinear interpolant described by Weiser & Zarantonello (1988). In two dimensions the four products are the familiar bilinear corner weights; in three dimensions there are eight trilinear weights. The current implementation makes grid rank static so JAX sees a fixed corner sum during tracing.

Differentiation and execution boundaries¶

Regular-grid interpolation does not have one universal gradient contract:

Table 1:Regular-grid interpolation contracts

Operation	Contract	Supported claim	Boundary
Values at fixed axes and interior queries	`smooth_pathwise`	AD agrees with central finite differences for table values.	The active cell and boundary policy are fixed locally.
Interior query coordinates	`smooth_pathwise`	AD agrees with central finite differences inside one cell.	The query remains away from grid lines and domain boundaries.
Clamped or filled exterior coordinates	`known_zero`	The selected output is locally constant with respect to an exterior query.	This is saturation or sentinel selection, not an inference direction.
Cell boundaries and axis locations	`validation_only`	Continuity, exact grid values, and named one-sided behavior can be checked.	`searchsorted` changes the active cell; no universal derivative is claimed.
Reject validation	`validation_only`	Concrete eager inputs can fail closed on invalid axes or outside queries.	Value-dependent checks are skipped under tracing; compiled callers own the precondition.

The validation suite compares AD with finite differences for both table values and interior query coordinates. Axis-location gradients are not part of that claim: changing an axis can change interval membership as well as the local coordinate scale. At cell boundaries the interpolant is continuous, but its first derivative can change between adjacent cells.

What this does not do¶

This primitive assumes tensor-product grid structure. It does not handle scattered data, triangulations, adaptive meshes, multidimensional monotonicity constraints, missing-cell reconstruction, or domain-specific grid selection. Those policies belong in higher-level packages or future, separately validated modules.

From explanation to evidence¶

For signatures and payload ownership, see jaxstro.numerics.regular_grid. The assertion-bearing test map is in Validation. The five package-wide differentiation labels are defined in Gradient contracts.

References¶

Weiser, A., & Zarantonello, S. E. (1988). A Note on Piecewise Linear and Multilinear Table Interpolation in Many Dimensions. Mathematics of Computation, 50(181), 189–196. 10.1090/S0025-5718-1988-0917826-0
